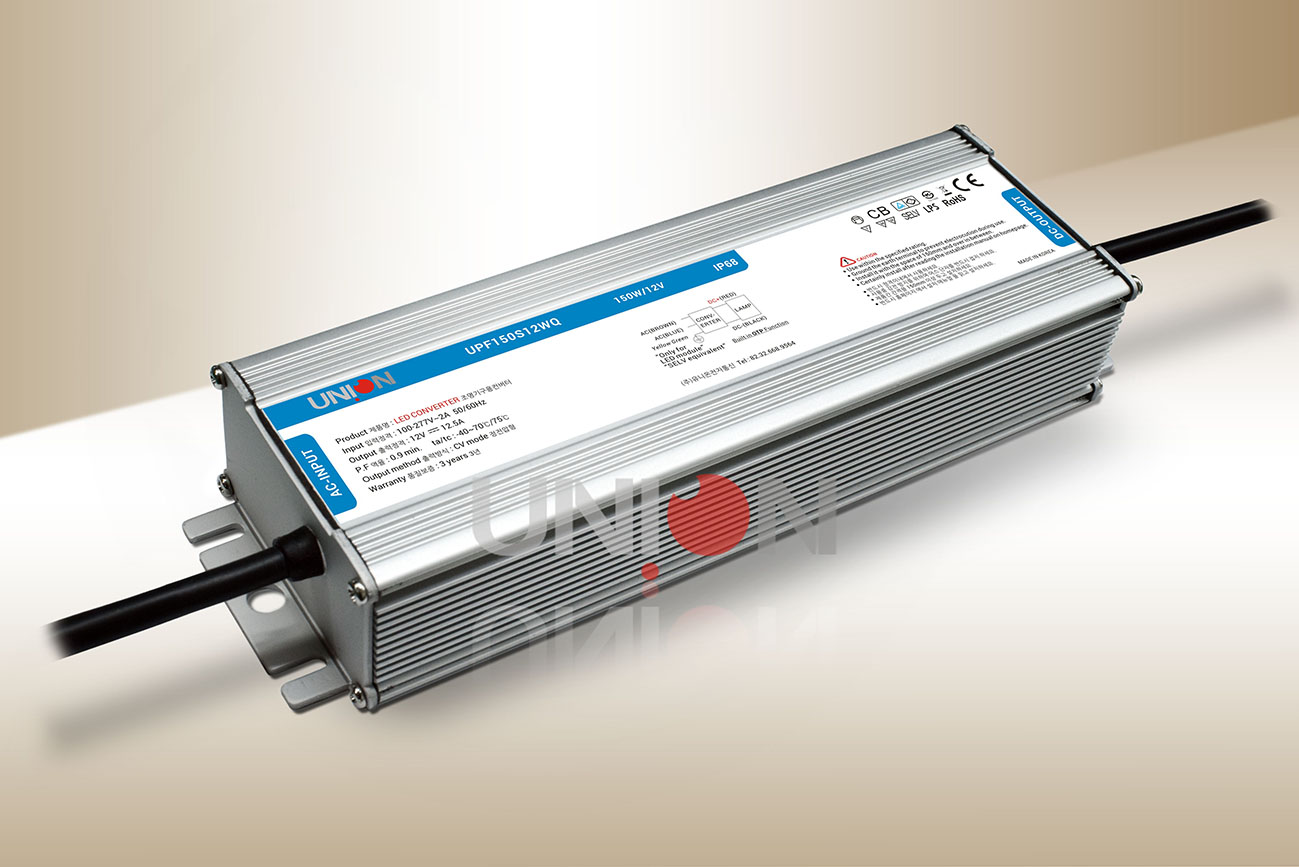

UPF-WQ Series
F150WQ 조회
6,054
Info
● Constant voltage design
● Built-in PFC function
● Wide input voltage range
● Protection : Over load/Over voltage / Short circuit / Over temperature
● IP68 design for outdoor installation
● 100% full load burn-in test
● Suitable for LED lighting and moving sign applications
● Metal case
Detail View & Download
- SPEC
- REPORT
- CERTIFICATE
- INSTALLATION MANUAL
Specifications
- Series
- Model No.
- Approvals
- Input
- Output
- Power
- Size(mm) / Weight
- F150WQ
- UPF150S12WQ
- KS,KC,PSE,CE
- 90~305Vac
- 12V 12.5A
- 150W
- 223*68*38.8/1.04kg
- F150WQ
- UPF150S24WQ
- KS,KC,PSE,CE
- 90~305Vac
- 24V 6.25A
- 150W
- 223*68*38.8/1.04kg
● Constant voltage design
● Built-in PFC function
● Wide input voltage range
● Protection : Over load/Over voltage / Short circuit / Over temperature
● IP68 design for outdoor installation
● 100% full load burn-in test
● Suitable for LED lighting and moving sign applications
● Metal case
