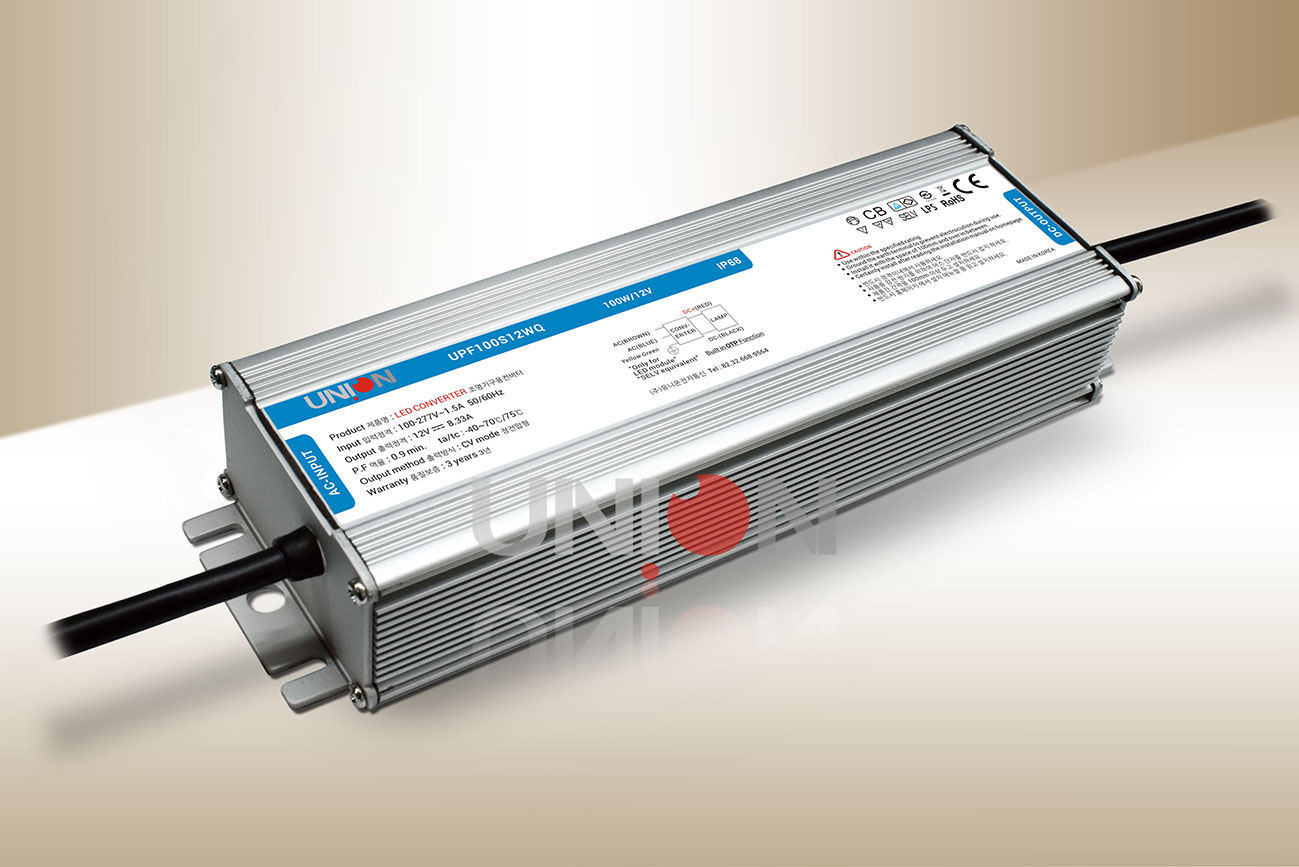

UPF-WQ Series
F100WQ 조회
5,976
Info
● Constant voltage design
● Built-in PFC function
● Wide input voltage range
● Protection : Over load/Over voltage / Short circuit / Over temperature
● IP68 design for outdoor installation
● 100% full load burn-in test
● Suitable for LED lighting and moving sign applications
● Metal case
Detail View & Download
- SPEC
- REPORT
- CERTIFICATE
- INSTALLATION MANUAL
Specifications
- Series
- Model No.
- Approvals
- Input
- Output
- Power
- Size(mm) / Weight
- F100WQ
- UPF100S12WQ
- KS,KC,PSE,CE
- 90~305Vac
- 12V 8.33A
- 100W
- 198.6*61.5*36.8/0.76kg
- F100WQ
- UPF100S24WQ
- KS,KC,PSE,CE
- 90~305Vac
- 24V 4.15A
- 100W
- 198.6*61.5*36.8/0.76kg
● Constant voltage design
● Built-in PFC function
● Wide input voltage range
● Protection : Over load/Over voltage / Short circuit / Over temperature
● IP68 design for outdoor installation
● 100% full load burn-in test
● Suitable for LED lighting and moving sign applications
● Metal case
