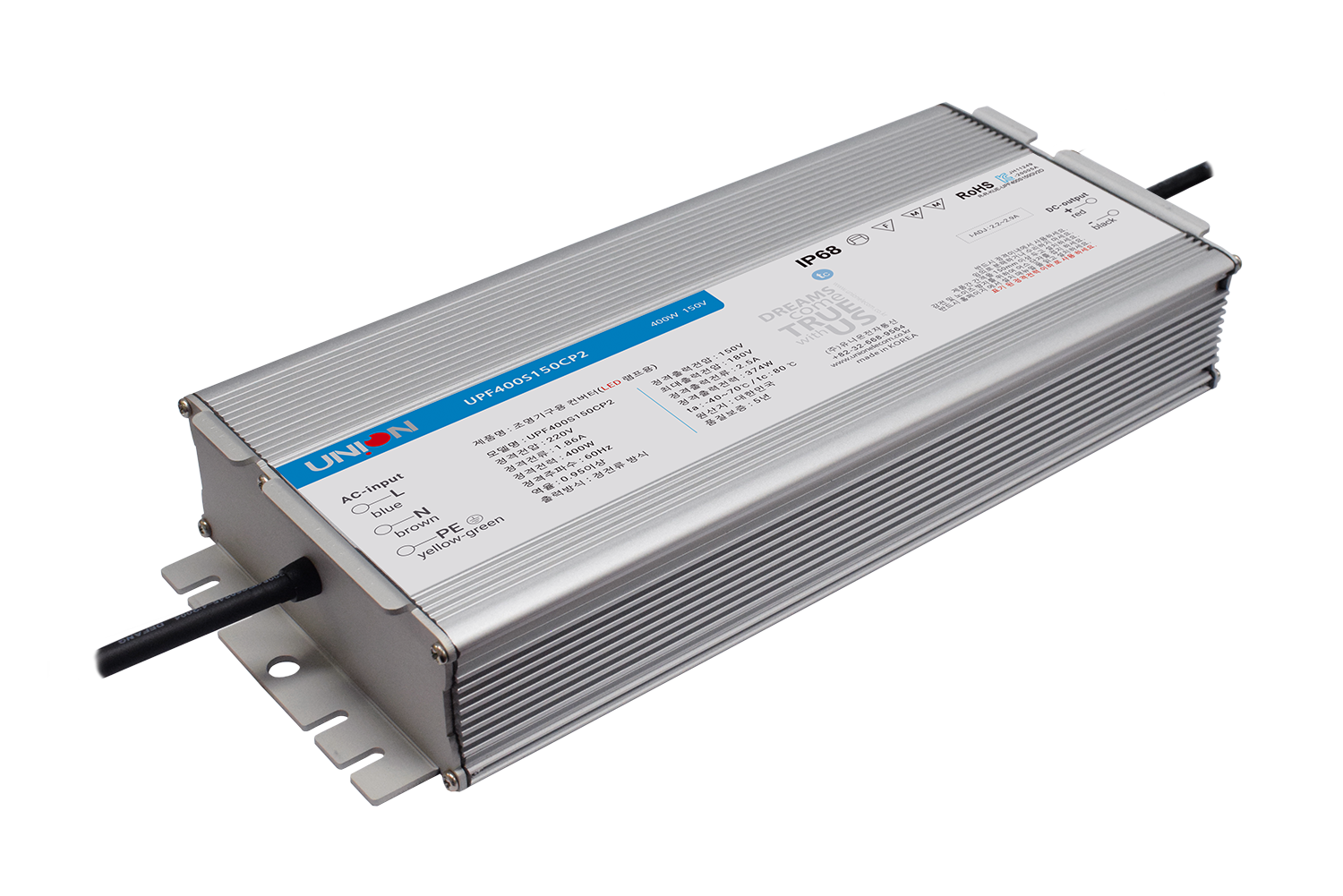

UPF-CP2[CL2] Series
F400CP2 조회
7,959
Info
● Constant current design
● Ac input voltage 180~264Vac
● Built-in PFC function
● Protection : Over current/ Short circuit
● IP68 design for outdoor installation
● 3 in 1 dimming function(option : D type)
● 100% full load burn-in test
● Suitable for LED lighting and street & tunnel lighting applications
● Metal case
Detail View & Download
- SPEC
- REPORT
- CERTIFICATE
- INSTALLATION MANUAL
Specifications
- Series
- Model No.
- Approvals
- Input
- Output
- C.C Region
- D type
- Power
- Size(mm) / Weight
- F400CP2
- UPF400S48CP2
- KC
- 180~264Vac
- 48V 7.8A
- 42V~48V
- O
- 376W
- 307.2*74*46.5/1.7kg
- F400CP2
- UPF400S150CP2
- KC
- 180~264Vac
- 150V 2.5A
- 135V~165V
- O
- 374W
- 260*125.5*46.2/2.35kg
- F400CP2
- UPF400S190CP2
- KC
- 180~264Vac
- 190V 2.02A
- 160V~200V
- O
- 376W
- 260*125.5*46.2/2.35kg
- F400CP2
- UPF400S220CP2
- KC
- 180~264Vac
- 220V 1.7A
- 198V~242V
- O
- 374W
- 260*125.5*46.2/2.35kg
● Constant current design
● Ac input voltage 180~264Vac
● Built-in PFC function
● Protection : Over current/ Short circuit
● IP68 design for outdoor installation
● 3 in 1 dimming function(option : D type)
● 100% full load burn-in test
● Suitable for LED lighting and street & tunnel lighting applications
● Metal case
