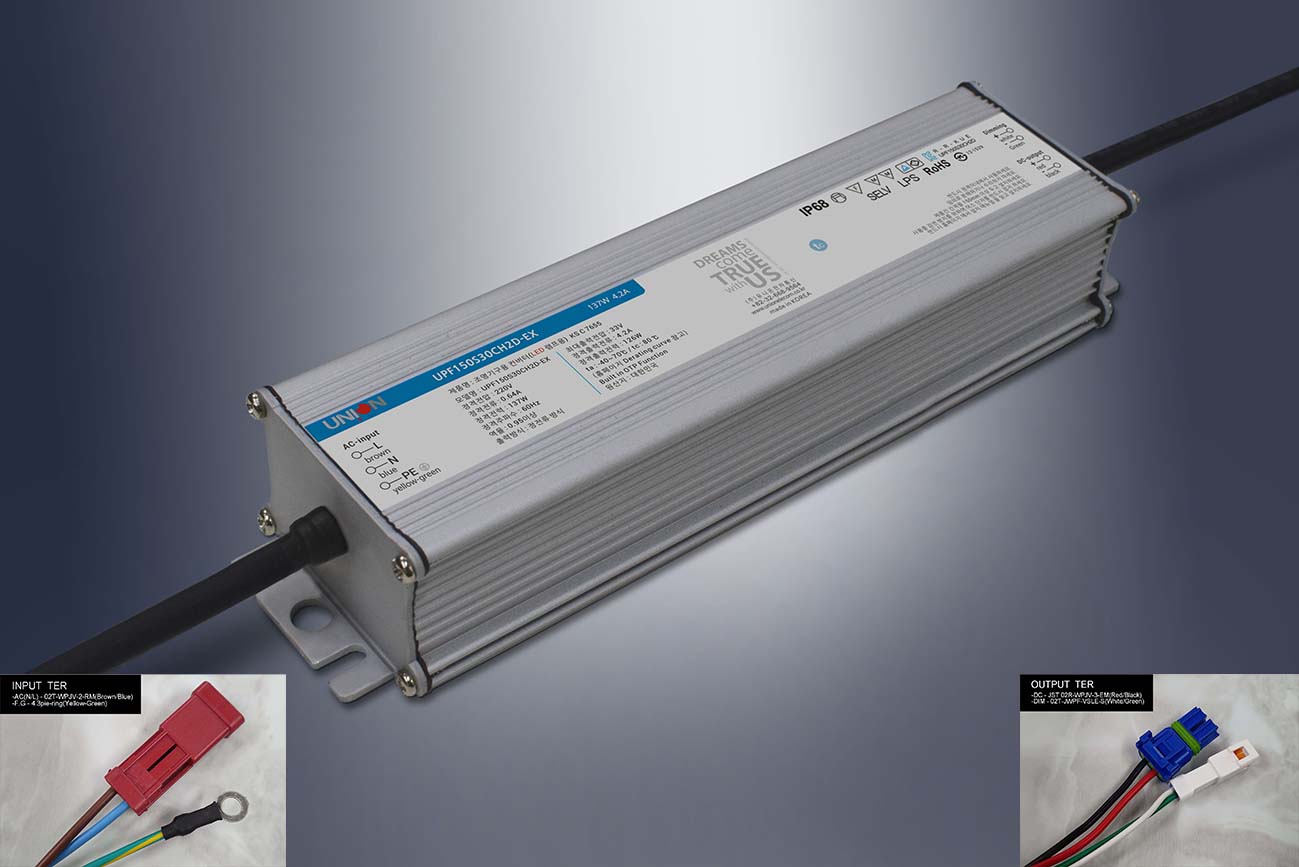

WATERPROOF with PFC CONVERTER

UPF-CH2D-EX Series F150CH2D-EX 조회
7,094

Info

● Constant current design

● Built-in PFC function

● Protection : Over current / Short circuit

● IP68 design for outdoor installation

● 3 in dimming function

● Output current level can be adjusted through internal potentiometer

● 100% full load burn-in test

● Suitable for LED lighting and street & tunnel lighting applications

● Metal case


Specifications
  • Series
  • Model No.
  • Approvals
  • Input
  • Output
  • Power
  • Size(mm) / Weight
  • F150CH2D-EX
  • UPF150S24CH2D-EX
  • KS,KC
  • 180~264Vac
  • 24V 5.6A
  • 150W
  • 231*68*38.8/1.1kg
  • F150CH2D-EX
  • UPF150S30CH2D-EX
  • KS,KC
  • 180~264Vac
  • 30V 4.2A
  • 150W
  • 224*55.5*37.3/0.77kg

● Constant current design

● Built-in PFC function

● Protection : Over current / Short circuit

● IP68 design for outdoor installation

● 3 in dimming function

● Output current level can be adjusted through internal potentiometer

● 100% full load burn-in test

● Suitable for LED lighting and street & tunnel lighting applications

● Metal case
