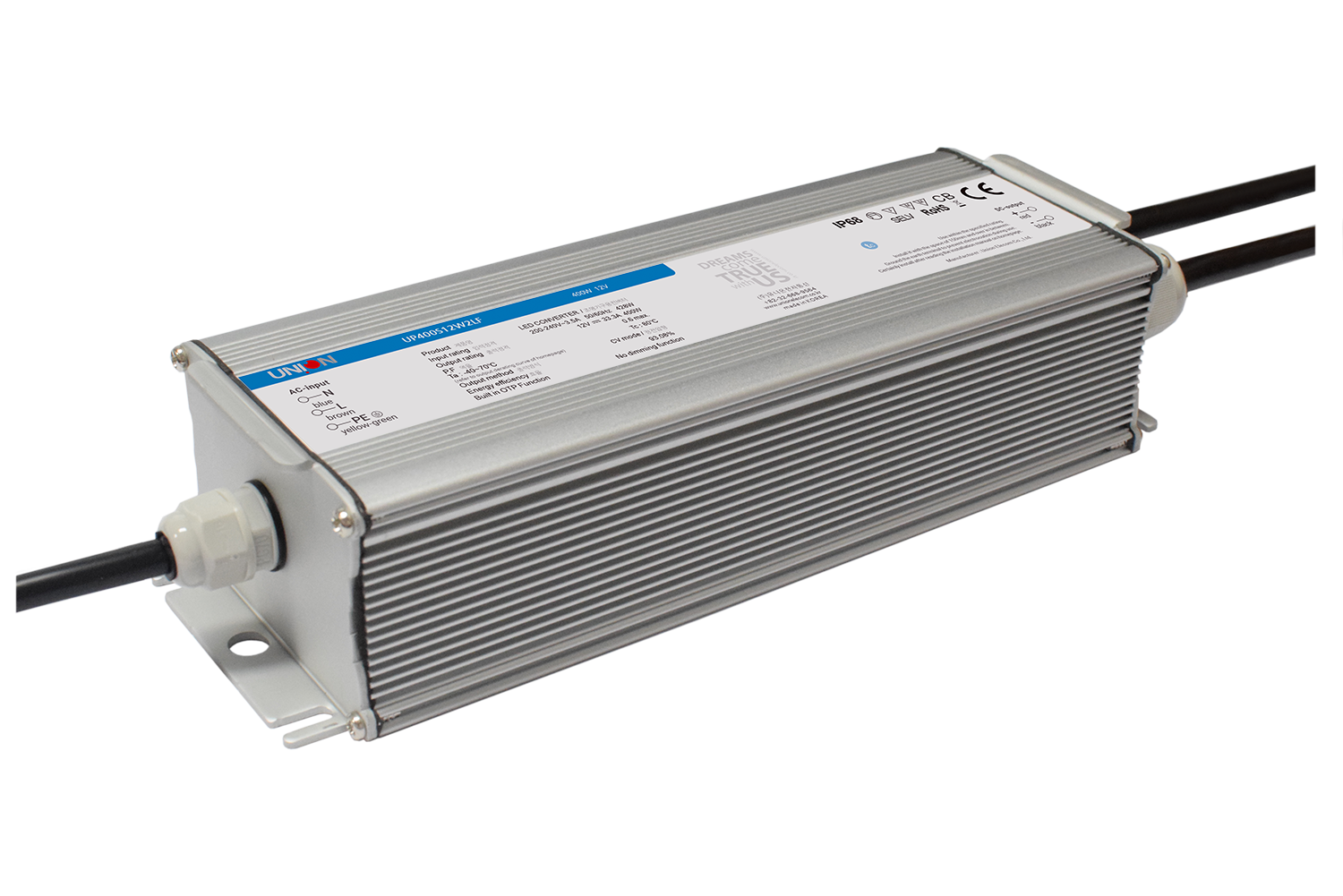

WATERPROOF CONVERTER

UP-W2L Metal Case Series 400W2LF 조회
2,366

Info

● Constant voltage design

● Full power

● AC input voltage 180~246Vac

● Protection : Over load/Short circuit/Over temperature

● IP68 design for outdoor installation

● 100% full load burn-in test

● Suitable for LED lighting and moving sign applications

● 3 years warranty

Detail View & Download
  • SPEC
  • REPORT
  • CERTIFICATE
  • INSTALLATION MANUAL
Specifications
  • Series
  • Model No.
  • Approvals
  • Input
  • Output
  • Power
  • Size(mm) / Weight
  • 400LF
  • UP400S12W2LF
  • CE,CB
  • AC180~264Vac
  • 12V
  • 400W
  • 257*74*49/1.54kg

● Constant voltage design

● Full power

● AC input voltage 180~246Vac

● Protection : Over load/Short circuit/Over temperature

● IP68 design for outdoor installation

● 100% full load burn-in test

● Suitable for LED lighting and moving sign applications

● 3 years warranty
