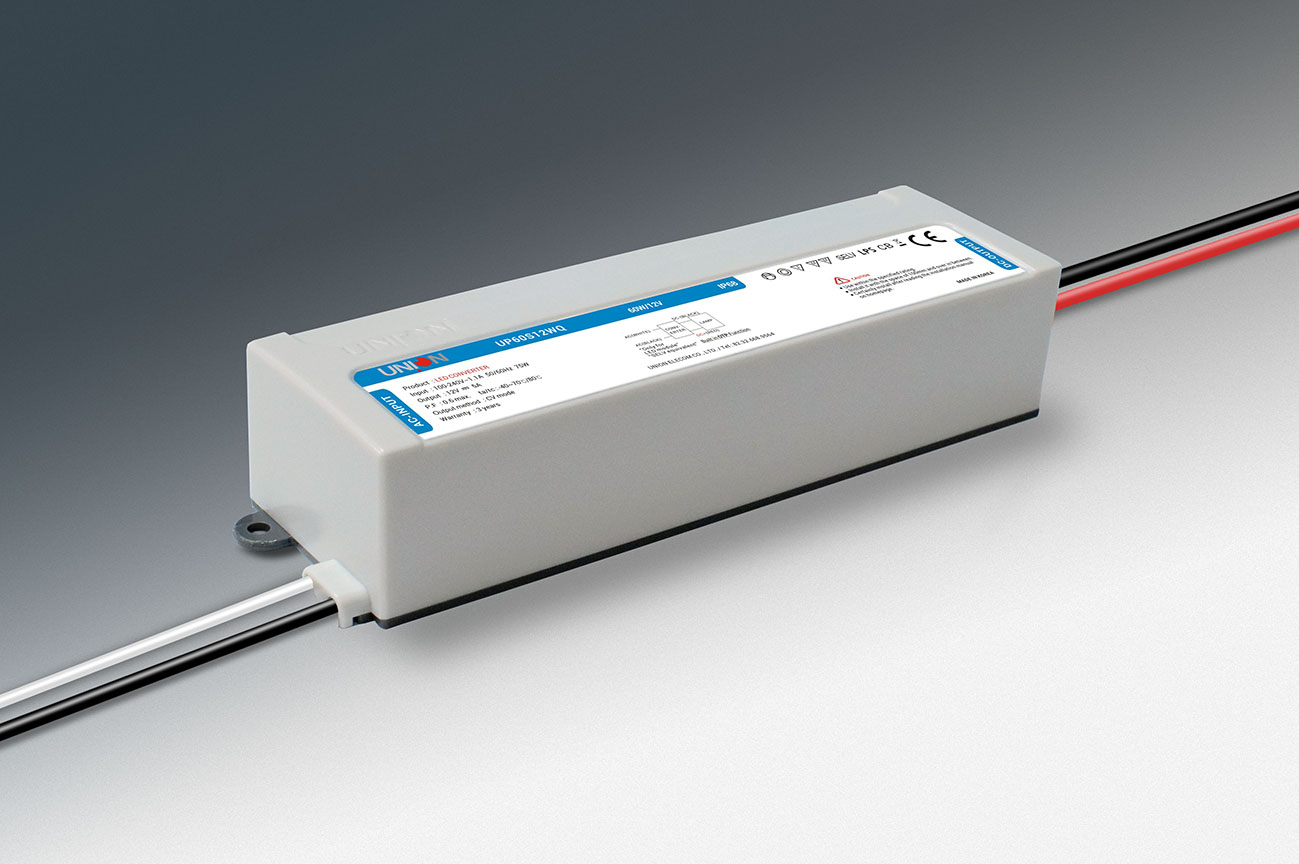

UP-WQ Series
60WQ 조회
6,379
Info
● Constant voltage design
● Wide input voltage range
● Protection : Over load/Over voltage / Short circuit
● IP68 design for outdoor installation
● 100% full load burn-in test
● Suitable for LED lighting and moving sign applications
● Plastic case
● 3 years warranty
Detail View & Download
- SPEC
- REPORT
- CERTIFICATE
- INSTALLATION MANUAL
Specifications
- Series
- Model No.
- Approvals
- Input
- Output
- Power
- Size(mm) / Weight
- 60WQ
- UP60S12WQ
- CE/CB
- 90~277Vac
- 12V 5A
- 60W
- 170.5*42*35/0.35kg
- 60WQ
- UP60S24WQ
- CE/CB
- 90~277Vac
- 24V 2.5A
- 60W
- 170.5*42*35/0.35kg
● Constant voltage design
● Wide input voltage range
● Protection : Over load/Over voltage / Short circuit
● IP68 design for outdoor installation
● 100% full load burn-in test
● Suitable for LED lighting and moving sign applications
● Plastic case
● 3 years warranty
