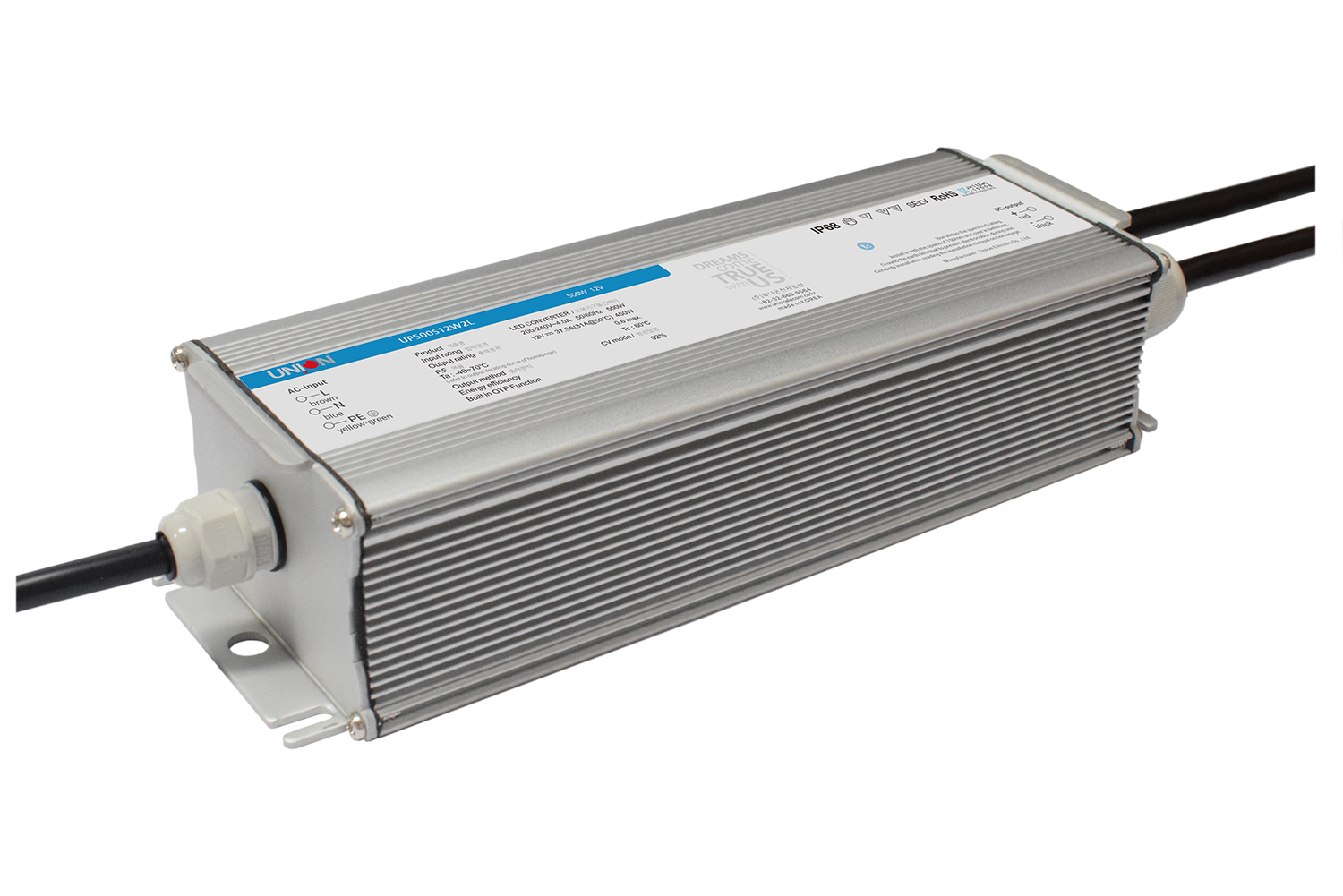

UP-W2L Metal Case Series
500W2L 조회
6,782
Info
● Constant voltage design
● AC input voltage 180~246Vac
● Protection : Over load/Short circuit/Over temperature
● IP68 design for outdoor installation
● 100% full load burn-in test
● Suitable for LED lighting and moving sign applications
● 2 years warranty
Detail View & Download
- SPEC
- REPORT
- CERTIFICATE
- INSTALLATION MANUAL
Specifications
- Series
- Model No.
- Approvals
- Input
- Output
- Power
- Size(mm) / Weight
- 500W2L
- UP500S12W2L
- KC
- 180~246Vac
- 12V 37.5A (31A@50℃)
- 450W
- 257*74*49/1.54kg
- 500W2L
- UP500S24W2L
- KC
- 180~246Vac
- 24V 18.7A (15.5A@50℃)
- 450W
- 257*74*49/1.54kg
● Constant voltage design
● AC input voltage 180~246Vac
● Protection : Over load/Short circuit/Over temperature
● IP68 design for outdoor installation
● 100% full load burn-in test
● Suitable for LED lighting and moving sign applications
● 2 years warranty
