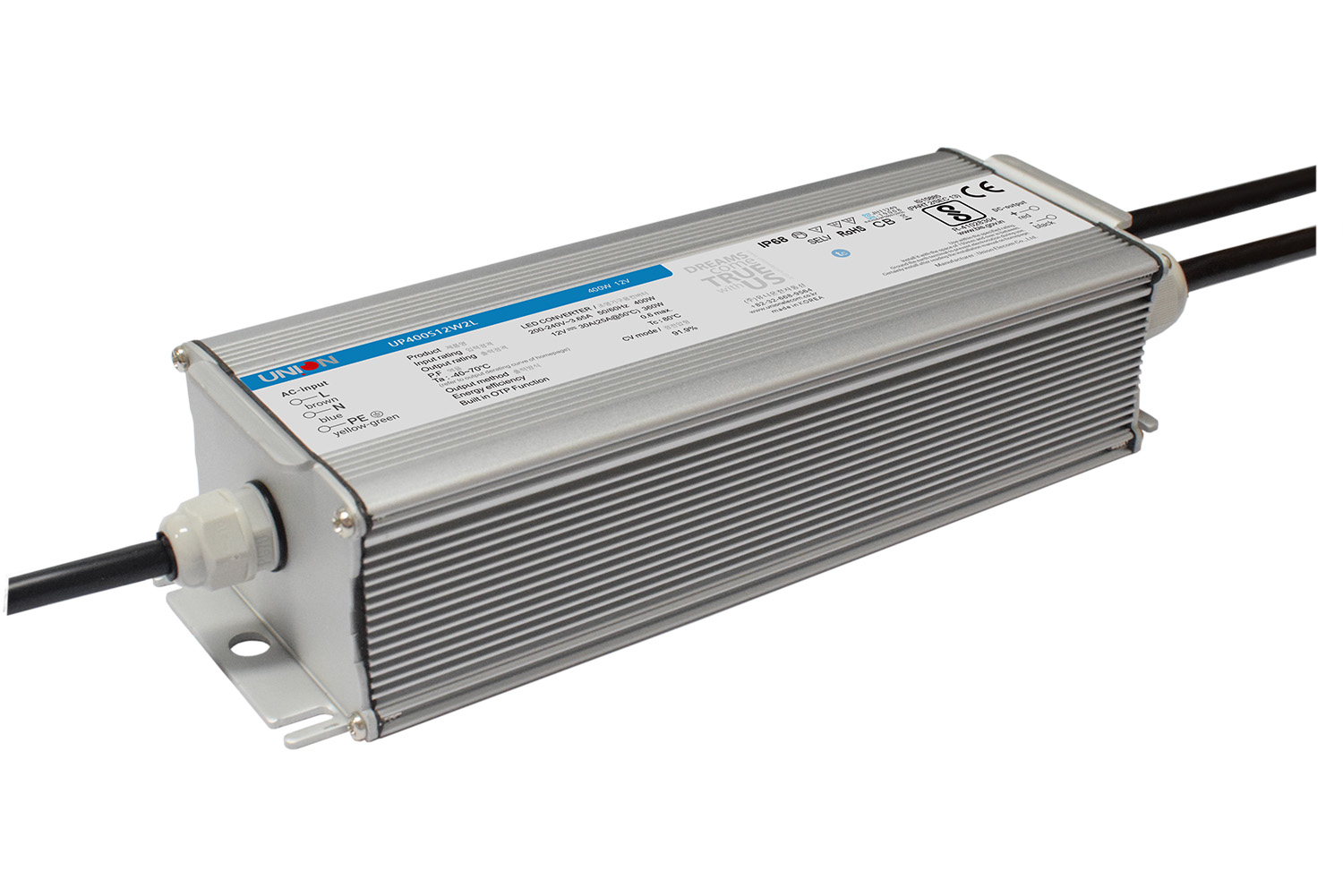

UP-W2L Metal Case Series
400W2L 조회
6,827
Info
● Constant voltage design
● AC input voltage 180~246Vac
● Protection : Over load/Short circuit/Over temperature
● IP68 design for outdoor installation
● 100% full load burn-in test
● Suitable for LED lighting and moving sign applications
● 2 years warranty
Detail View & Download
- SPEC
- REPORT
- CERTIFICATE
- INSTALLATION MANUAL
Specifications
- Series
- Model No.
- Approvals
- Input
- Output
- Power
- Size(mm) / Weight
- 400W2L
- UP400S12W2L
- KC/CE/CB
- 180~246Vac
- 12V 30A (25A@50℃)
- 360W
- 222*74*49/1.45kg
- 400W2L
- UP400S24W2L
- KC/CE/CB
- 180~246Vac
- 24V 15A (12.5A@50℃)
- 360W
- 222*74*49/1.45kg
● Constant voltage design
● AC input voltage 180~246Vac
● Protection : Over load/Short circuit/Over temperature
● IP68 design for outdoor installation
● 100% full load burn-in test
● Suitable for LED lighting and moving sign applications
● 2 years warranty
