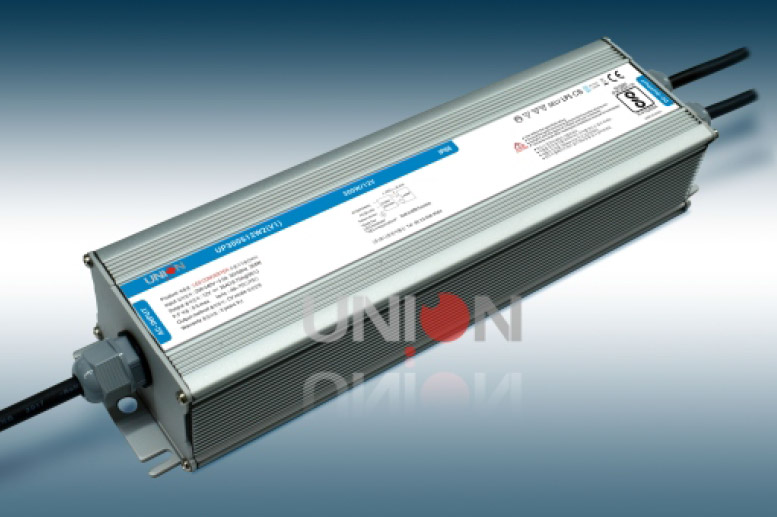

UP-W2[V1] Metal Case Series
300W2(V1) 조회
6,883
Info
● Constant voltage design
● AC Input voltage 160~277V
● Protection : Over load / Over voltage / Short circuit / Over temperature
● IP68 design for outdoor installation
● 100% full load burn-in test
● Suitable for LED lighting and moving sign applications
● 3 years warranty
Detail View & Download
- SPEC
- REPORT
- CERTIFICATE
- INSTALLATION MANUAL
Specifications
- Series
- Model No.
- Approvals
- Input
- Output
- Power
- Size(mm) / Weight
- 300W2(V1)
- UP300S12W2(V1)
- CE,CB,KC
- 160~277Vac
- 12V 25A (18.75A@50℃)
- 300W
- 282x74x49/1.45kg
- 300W2(V1)
- UP300S24W2(V1)
- CE,CB,KC
- 160~277Vac
- 24V 12.5A (9.37A@50℃)
- 300W
- 282x74x49/1.45kg
● Constant voltage design
● AC Input voltage 160~277V
● Protection : Over load / Over voltage / Short circuit / Over temperature
● IP68 design for outdoor installation
● 100% full load burn-in test
● Suitable for LED lighting and moving sign applications
● 3 years warranty
