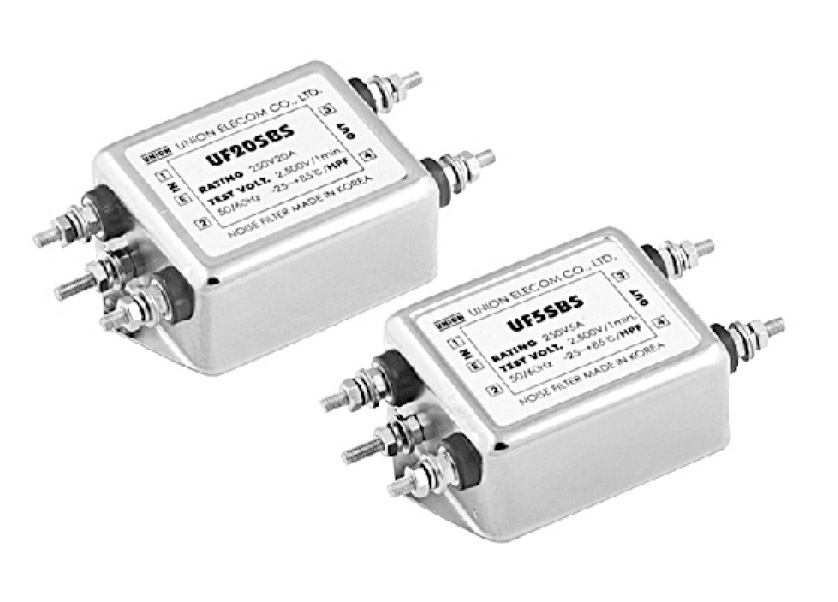

Panel Mount/bolt-termianal
SBS 조회
3,458
Info
● Low leakage
● Excellent filtering for normal mode and common mode noise
● Suitable for industrial & medical & equipment, OA, FA applications
● 3 years warranty
Detail View & Download
- SPEC
- REPORT
- CERTIFICATE
- INSTALLATION MANUAL
Specifications
- Series
- Model No.
- Approvals
- Input
- Output
- Rating
- Size(mm) / Weight
- SBS
- UF5SBS
- TUV
- 250V5A
- 85x54x32/0.2kg
- SBS
- UF6SBS
- TUV
- 250V6A
- 85x54x32/0.2kg
- SBS
- UF10SBS
- TUV
- 250V10A
- 85x54x32/0.2kg
- SBS
- UF15SBS
- TUV
- 250V15A
- 85x54x32/0.2kg
- SBS
- UF20SBS
- TUV
- 250V20A
- 85x54x32/0.2kg
- SBS
- UF30SBS
- TUV
- 250V30A
- 117x84x38/0.5kg
- SBS
- UF40SBS
- TUV
- 250V40A
- 117x84x50/0.7kg
- SBS
- UF50SBS
- TUV
- 250V50A
- 117x84x50/0.7kg
- SBS
- UF60SBS
- TUV
- 250V60A
- 170x102x57/1.2kg
- SBS
- UF80SBS
- TUV
- 250V80A
- 170x102x57/1.2kg
- SBS
- UF100SBS
- TUV
- 250V100A
- 210x120x65/2.2kg
- SBS
- UF120SBS
- TUV
- 250V120A
- 210x120x65/2.2kg
- SBS
- UF150SBS
- TUV
- 250V150A
- 210x120x65/2.2kg
- SBS
- UF200SBS
- 250V200A
- 340x140x140/5.5kg
- SBS
- UF300SBS
- 250V300A
- 340x140x140/5.5kg
- SBS
- UF400SBS
- 250V400A
- 400x150x140/8.5kg
● Low leakage
● Excellent filtering for normal mode and common mode noise
● Suitable for industrial & medical & equipment, OA, FA applications
● 3 years warranty
