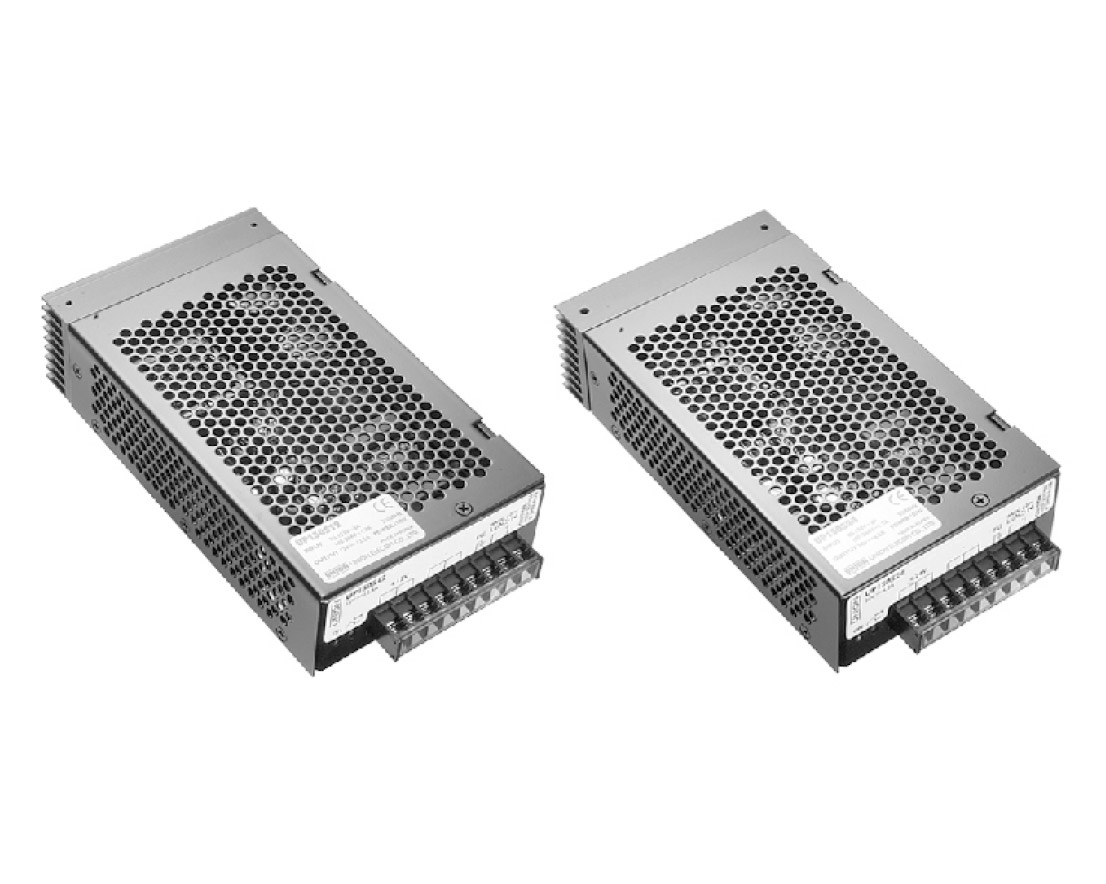

UP-S Series
150S 조회
4,340
Info
● Constant voltage design
● LED indicator for power on
● Protection : Over load / Over voltage / Short circuit
● 100% full load burn-in test
● Suitable for indoor LED lighting and industrial applications
● 3 years warranty
● Cooling by Air Convection
Detail View & Download
- SPEC
- REPORT
- CERTIFICATE
- INSTALLATION MANUAL
Specifications
- Series
- Model No.
- Approvals
- Input
- Output
- Power
- Size(mm) / Weight
- 150S
- UP150S05
- CE
- 90~132Vac / 180~264Vac
- 5V30A
- 150W
- 207x105x46/0.85kg
- 150S
- UP150S12
- CE,KC
- 90~132Vac / 180~264Vac
- 12V12.5A
- 150W
- 207x105x46/0.85kg
- 150S
- UP150S15
- CE
- 90~132Vac / 180~264Vac
- 15V10A
- 150W
- 207x105x46/0.85kg
- 150S
- UP150S24
- CE,KC
- 90~132Vac / 180~264Vac
- 24V6.2A
- 150W
- 207x105x46/0.85kg
● Constant voltage design
● LED indicator for power on
● Protection : Over load / Over voltage / Short circuit
● 100% full load burn-in test
● Suitable for indoor LED lighting and industrial applications
● 3 years warranty
● Cooling by Air Convection
