GENERAL POWER SUPPLY

HOME > SMPS > GENERAL POWER SUPPLY > UP-D Series

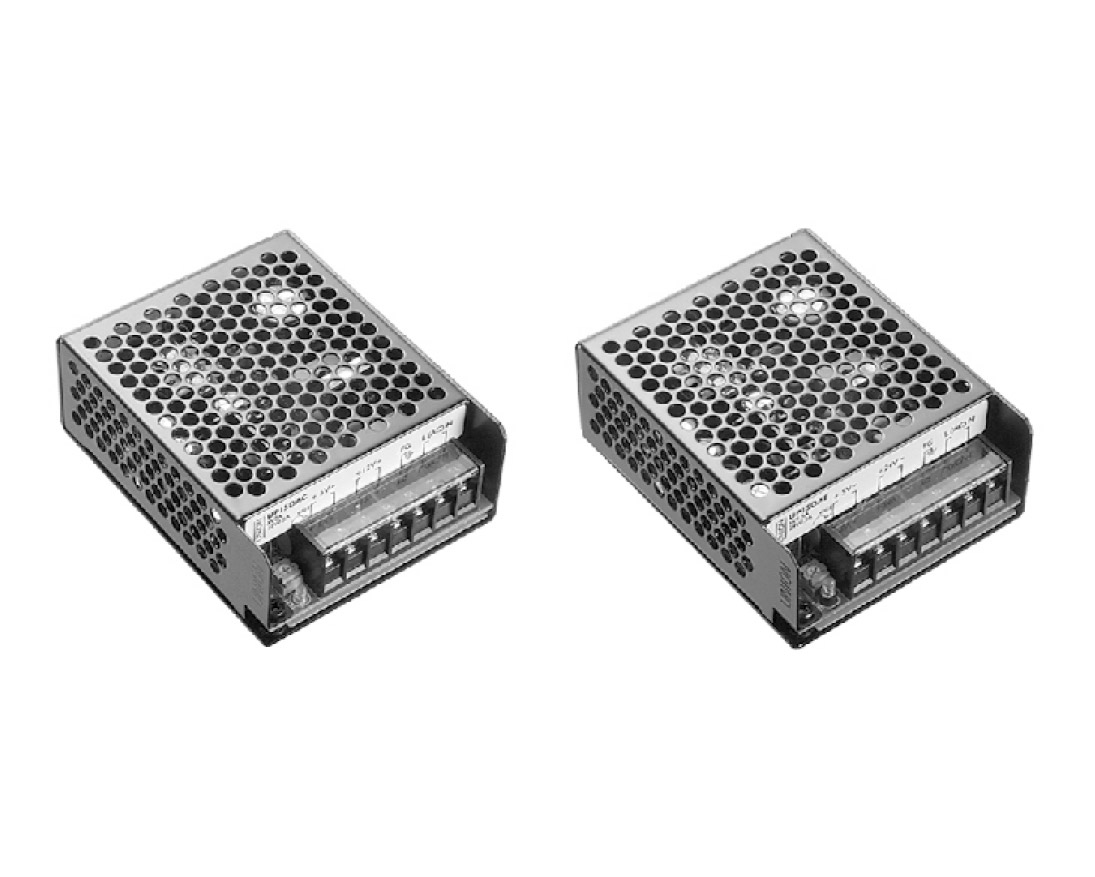

UP-D Series 15D 조회
4,034

0번째 이미지 새창
Info

● Constant voltage design

● Wide input voltage range

● LED indicator for power on

● Protection : Over load / Over voltage / Short circuit

● 100% full load burn-in test

● Suitable for industrial applications

● 3 years warranty

Detail View & Download
  • SPEC
  • REPORT
  • CERTIFICATE
  • INSTALLATION MANUAL
Specifications
  • Series
  • Model No.
  • Approvals
  • Input
  • Output
  • Power
  • Size(mm) / Weight
  • 15D
  • UP15DAC
  • CE
  • 85~264Vac
  • CH1 : 5V2A
  • 15W
  • 98x79x37/0.23kg
  • 15D
  • UP15DAC
  • CE
  • 85~264Vac
  • CH2 : 12V0.2A
  • 15W
  • 98x79x37/0.23kg
  • 15D
  • UP15DAD
  • CE
  • 85~264Vac
  • CH1 : 5V2A
  • 15W
  • 98x79x37/0.23kg
  • 15D
  • UP15DAD
  • CE
  • 85~264Vac
  • CH2 : 15V0.4A
  • 15W
  • 98x79x37/0.23kg
  • 15D
  • UP15DAE
  • CE
  • 85~264Vac
  • CH1 : 5V1.5A
  • 15W
  • 98x79x37/0.23kg
  • 15D
  • UP15DAE
  • CE
  • 85~264Vac
  • CH2 : 24V0.3A
  • 15W
  • 98x79x37/0.23kg
  • 15D
  • UP15DBB
  • 85~264Vac
  • CH1 : 9V1.2A
  • 15W
  • 98x79x37/0.23kg
  • 15D
  • UP15DBB
  • 85~264Vac
  • CH2 : 9V0.5A
  • 15W
  • 98x79x37/0.23kg
  • 15D
  • UP15DCC
  • 85~264Vac
  • CH1 : 12V0.7A
  • 15W
  • 98x79x37/0.23kg
  • 15D
  • UP15DCC
  • 85~264Vac
  • CH2 : 12V0.5A
  • 15W
  • 98x79x37/0.23kg
  • 15D
  • UP15DDD
  • 85~264Vac
  • CH1 : 15V0.5A
  • 15W
  • 98x79x37/0.23kg
  • 15D
  • UP15DDD
  • 85~264Vac
  • CH2 : 15V0.5A
  • 15W
  • 98x79x37/0.23kg

● Constant voltage design

● Wide input voltage range

● LED indicator for power on

● Protection : Over load / Over voltage / Short circuit

● 100% full load burn-in test

● Suitable for industrial applications

● 3 years warranty
